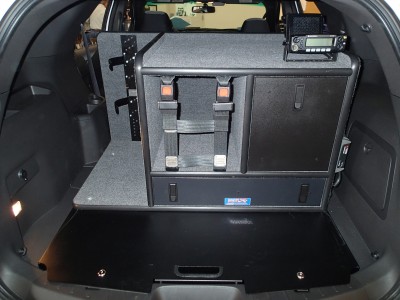

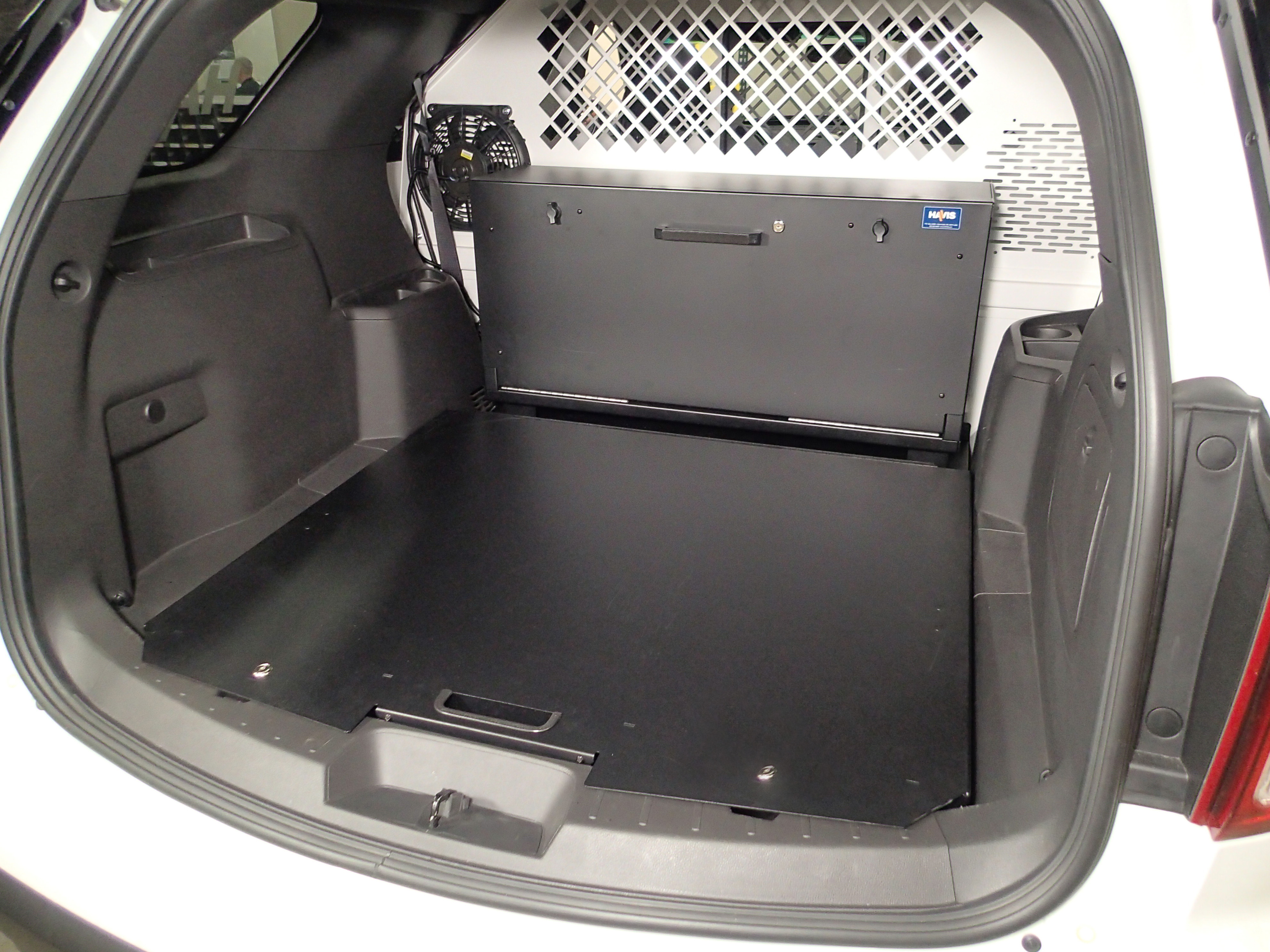

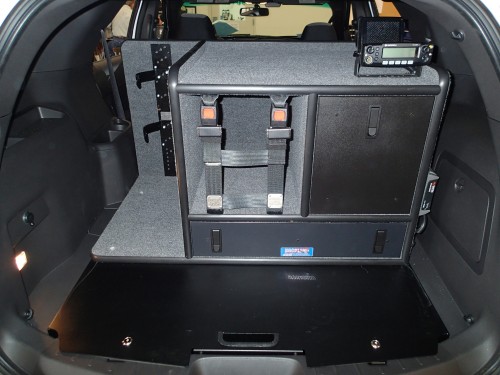

2013-2016 Ford Interceptor Utility Premium Fold Up Cargo Plate (C-TTP-INUT-200)
by Havis
•Part #: C-TTP-INUT-200
View Detailed Description
MSRP: $527.15
$421.72
Save 19%
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Trunk, Top, Plate, 200 Pounds of force, Ford Interceptor Utility Police Vehicle 13-16, See Specification,
- Premium fold up cargo plate fits 2013-2016 Ford Interceptor Utility

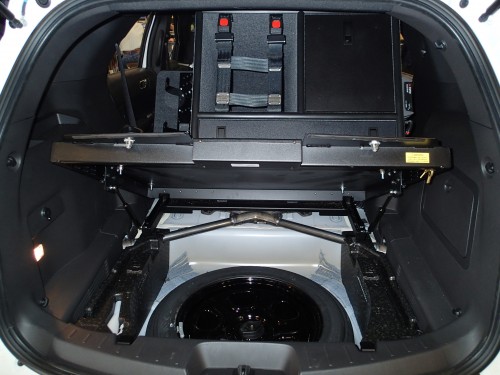

- Plate assembly with fold up equipment platform for mounting electronic components
- Replaces OEM rear cargo floor / spare tire cover and attaches without drilling holes
- Equipment to be mounted on the underside of plate for protection (6" high space from top of spare tire to bottom of plate)
- Installer must drill and bolt on equipment as desired

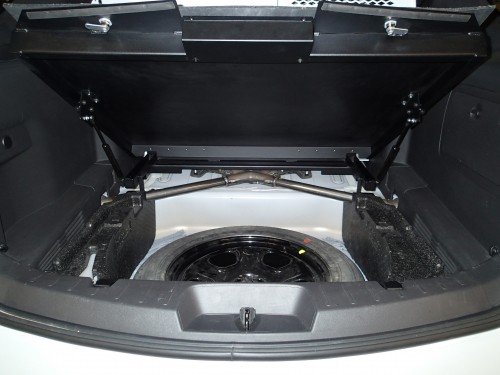

- Door is hinged down in the closed position
- Works with Havis, inc. K9 inserts
- Works with some other mfg. rear partitions by removing or modifying forward filler panel. partition brackets may also need to be modified.
- As of 8/1/15 two lower brackets were added to provide additional support for heavy items mounted on top of tray.
- Optional retrofit support bracket kit available for trays purchased prior to 8/1/15 (part number CM007390)
- Includes two (2) gas springs for assistance in opening or closing door
- Does not work with retail Ford Explorer
- Optional floor mat available - 35.5" wide x 38.5" long x .188" thick -heavy duty masticated rubber (part number - KNM01029-K4)
- Ships motor freight
- 14-gauge formed steel with a black medium texture powder coat finish
- 80 lb. maximum weight rating for equipment that is bolted to the underside of platform. (weight evenly distributed)
- Capable of holding platform in the open position with 180 lbs. of evenly distributed equipment weight (combined top and underside of platform)
- 400 lb. weight carrying capacity for cargo stored on top of the platform when closed. (will not hold 400 lbs. in open position)
- Mounting surface for equipment is 37.25" wide x 31" deep (front to back) x 6" high (to top of spare tire)
- Top of main platform measures - 40.5" wide x 38" deep (front to back)
- Forward trim panel measures - 40.5" wide x 12" deep (front to back)
- Forward trim panel goes up to OEM rear seats or K9 kit Model KK-K9-F18-K (trim panel not used with KK-K9-F18-K-PT)
- Works with C-TTP-INUT-2 (sold separately)
Be the first to review this product!
