Magnetic Mount for the 4910LR DL Reader (4910LR-MM)

The Magnetic Mount for the 4910LR-152-LTRK DL Reader is easy to install in your patrol car, easy to use, reduces distractions and is purpose built for rugged environments.

by L-Tron Corporation

Part #: 4910LR-MM


View Detailed Description
  • In Stock (100)
  • Ships Within 2 - 3 Weeks

$29.50

Qty:

***It's Better to Give****
Did you know 780 MILLION people worldwide do not have access to a clean water source? Together, we are a force for good.

Our Gift to You:
L-Tron will donate $1 to World Concern's clean water initiative for every magnetic mount purchased through December 31, 2018.
Learn more about the clean water initiative here.

_______________________________________________________________________________________________________________________


The 4910LR magnetic mount is an add on enhancement to use in place of the standard microphone clip mount included with the 4910LR-152-LTRK DL barcode reader kit.

The magnetic mount uses a self centering design which makes it quick to stick the 4910LR barcode scanner to the mount.

As soon as the scanner mount is close, the magnet engages the imaging scanner, holding it securely in place. Its just as easy and quick to release the 4910LR for use.

Click below to watch a [Video]:

Mechanical
Dimensions (LxWxH) 2” x 2” x 0.4”
Weight 2.5 Oz.

Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 5% to 95% relative humidity, non-condensing Drop Designed to withstand 1.5 m (5´) drops

Performance
70 pound engagement force

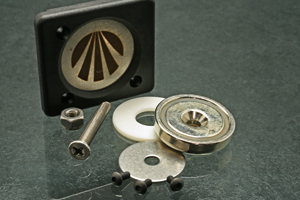

Materials
N52 Grade Neodymium Magnet
Nylon Reinforced injection molded Scanner engagement plate
#10 Stainless Steel x 1” Phillips Flat Head Machine Screw
#10 Stainless Steel Nylock Nut
#10 Fender Washer

Warranty
2 year factory warranty
