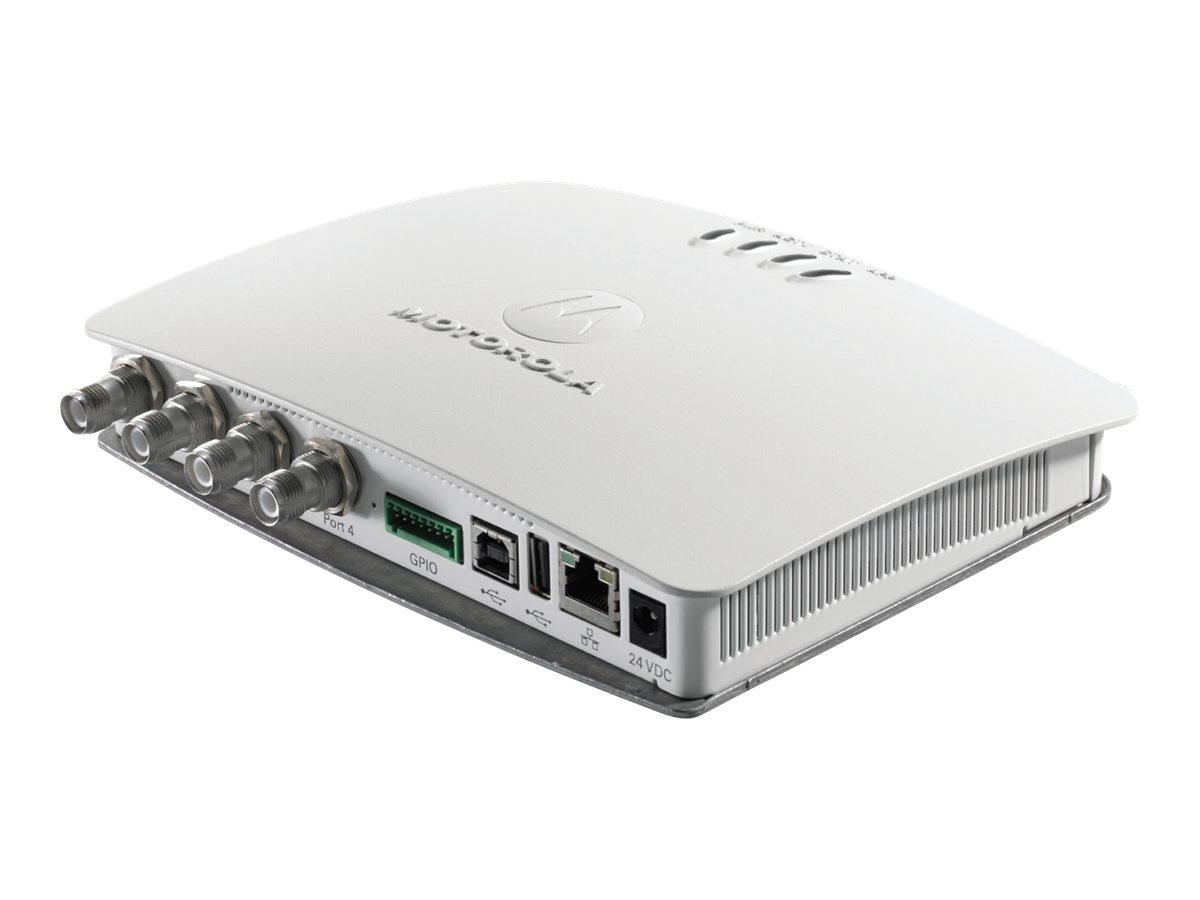

Motorola FX7500-4 (FX7500-42320A50-US)

FX7500 RFID Reader (4-Port Gen2 US RFID Reader, US Only)

by Motorola

Part #: FX7500-42320A50-US

View Detailed Description



The FX7500 Fixed RFID Reader introduces advanced Motorola Solutions-designed RFID radio technology for faster, more accurate read rates and more consistent performance even in challenging environments. The radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard - delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.

The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. It also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications.


  • High performance radio technology
    Higher sensitivity, improved interference rejection and echo cancellation means you get the best-in-class dense reader mode performance, up to 1200 tags/sec in FM0 mode.
  • Integrated Power Over Ethernet (POE), optically isolated GPIO, USB client and host ports with Wi-Fi and Bluetooth connectivity via USB
    All the tools you need for fast, easy deployment and simplified ongoing management of your RFID applications are built right into the FX7500 architecture.
  • 4-port reader configurations
    More configuration options mean more flexibility to optimize your read field. Deploy precisely the number of read points you need for proper coverage, no more, no less, and reduce your TCO.
  • Plenum area rated
    The FX7500 is approved and suitable for environmental air handling space installation, so it can operate effectively within walls and ceilings.

Product DescriptionMotorola FX7500-4 - RFID reader - USB, Ethernet 100
Device TypeRFID reader
Interface TypeUSB, Ethernet 100
Frequency902-928 MHz
Dimensions (WxDxH)7.7 in x 5.9 in x 1.7 in
Weight1.9 lbs
LocalizationUnited States
Manufacturer Warranty1 year warranty
