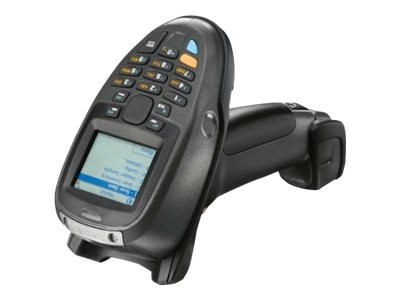

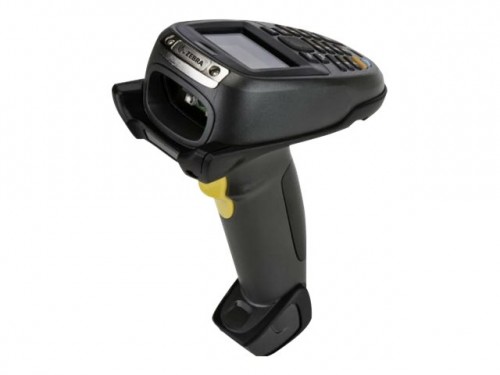

Motorola MT2090 (KT-2090-SD2000C14W)

MT2090 Series Wireless Mobile Computer (KT: MT2090, SD, Imager, STB2000)

by Motorola

Part #: KT-2090-SD2000C14W

View Detailed Description



Scan-to-IP is easy to use - anyone in your organization can set it up and enable bar code scanning in just minutes. Since Scan-to-IP works over your existing Wi-Fi wireless LAN (WLAN) instead of Bluetooth, you can enable bar code capture anywhere in your facility. And you can send the data to virtually any application on your network. The result? A rapid return on your investment - your business can begin reaping the benefits of mobility shortly after you take the device out of the box.


  • Send data to virtually any application - and multiple applications
    You can send the captured bar code data to the application of your choice, including an Excel spreadsheet or a Microsoft Word or Notepad document. In addition, since you can choose your data delimiter, you can easily upload captured data into any existing enterprise application. And in the event that workers are performing different tasks that require data to be sent to multiple applications, the simple scanning of a pairing bar code directs the data to the right application.
  • Get interference-free wireless scanning anywhere in your facility
    Since Scan-to-IP uses the Wi-Fi radio instead of the Bluetooth radio, your workers can scan bar codes anywhere inside your facility that has Wi-Fi coverage - the Bluetooth distance limitation is eliminated. In addition, the WLAN coverage issues that can arise due to interference from Bluetooth radios are also eliminated.
  • Get Wi-Fi security and speed
    Transmitting bar code data over your Wi-Fi WLAN instead of via Bluetooth allows you to take advantage of WLAN security and high-speed data transfer - data is safer and even volumes of data-rich 2D bar codes can be captured and transmitted instantly.
  • Add as many users as you like
    This robust out-of-the-box scanning solution allows you to support multiple scanners on the same host. No matter how many workers may need to scan bar codes on your production line or in your warehouse today or tomorrow, you can add them as needed.
  • Prevent data errors with visual data verification
    Scan-to-IP allows you to take advantage of the display that is integrated into the MT2090. When a bar code is scanned, the information appears on the display. Users can then easily verify that the scan was completed accurately, as well as utilize the resulting data to ensure task accuracy. For example, a user who is scanning a part on a production line can verify the right part is about to be used, protecting product quality.
  • Automatically capture a full audit trail
    As your users scan bar codes throughout each day, a history file is automatically captured, so you can see which scanner scanned each and every bar code, complete with a department identification code, date stamp and time stamp (if desired).

What's in the Box

  • Motorola MT2090
  • Docking cradle
  • Pistol grip handle, charging cradle
  • USB cable

Product DescriptionMotorola MT2090 - data collection terminal - Windows CE 5.0 - 64 MB
Product TypeData collection terminal - rugged
Operating SystemMicrosoft Windows CE 5.0
DisplayColor TFT - 320 x 240
ProcessorIntel XScale PXA270
Processor Clock Speed312 MHz
Storage64 MB
Wireless ConnectivityBluetooth, 802.11a/b/g
Barcode ReaderYes ( 2D imager )
BarcodesCode 93, Code 39, UCC/EAN-128, ISBT 128, NW-7, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 39 Full ASCII, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, Discrete 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, Data Matrix, ITF, TLC39, UPC-E1, Micro QR code, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Stacked
FeaturesUSB host
Dimensions (WxDxH)5 in x 3.1 in x 7.8 in
Weight13.33 oz
ColorDark gray
Manufacturer Warranty3 years warranty
