Symbol MT2090 (KT-2090-SD2000C1US)


by Motorola

Part #: KT-2090-SD2000C1US

View Detailed Description



Streamline scan-intensive data applications with the MT2000 Series. Combining the simplicity of a scanner with the intelligence of a mobile computer, these handheld mobile terminals provide advanced 1D/2D bar code, DPM and image capture, as well as the ability to key in and view data. 802.11a/b/g, Bluetooth, corded and batch connectivity options provide the flexibility to meet a wide range of business needs, and the ergonomic yet rugged design offers comfortable, reliable operation throughout your environment. Built on the .Net platform for easy application development, the MT2000 Series also comes pre-loaded with inventory software and an MCL client to facilitate porting of new and legacy applications.

The kit includes: 802.11/Bluetooth terminal with SR Imager (MT2090-SD0D62170WR), single slot charge only cradle with Active Sync (STB2000-C10007R), cradle power supply (KT-14000-148R), US AC line cord (23844-0000R) and Active Sync cable CBA-U01-S07ZAR.


  • Comprehensive connectivity options - including wireless, cordless and corded
    802.11a/b/g for wireless freedom throughout your facility; Bluetooth for connectivity as far as 300 feet (91.44 m) away from a host device; USB, RS-232 for flexible corded connectivity.
  • Comprehensive data capture options - 1D, 2D, image capture, EAS
    Significantly reduces the need to purchase multiple devices to capture different types of data - today and in the future.
  • Superior 1D laser scanning technology
    First time rapid capture of even damaged and poor quality 1D bar codes over a large working range - from 1 in./2.54 cm to as far as 50 in./127 cm.
  • A new standard for 2D imaging
    Aggressive performance on 1D/2D bar codes plus the ability to capture signatures, photos and video; omnidirectional 1D/2D bar code scanning improves productivity by eliminating the need to align scanner and bar code.
  • Windows CE 5.0 operating system
    Easy to scale and highly reliable industry-standard open architecture.
  • Pre-loaded MCL client
    Provides the platform independence required to easily connect to new and legacy applications .

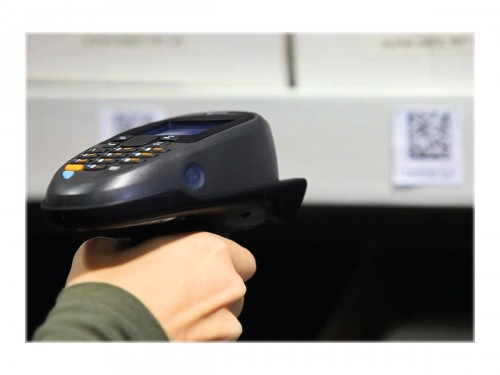

  • Forward-scanning pistol grip
    Easy-to-grip well-balanced design; reduces fatigue in scan-intensive environments.
  • Rugged design
    6 ft./1.8 m drop specification, IP54 sealing, scratch-resistant tempered glass exit window help ensure reliable operation in spite of everyday drops and exposure to dust and liquids.
  • Compatible with Motorola's Mobility Services Platform (MSP)
    Complete centralized management capabilities dramatically reduces the time and cost of day-to-day device management.
  • High resolution high contrast color QVGA display
    Easy to view regardless of lighting - from bright sunlight to dimly lit warehouses.
  • 21-key enhanced keypad
    Shifted alphanumeric functionality simplifies data entry; soft keys enable design of easy-to-use applications with a highly intuitive interface.
  • Microsoft .NET development environment
    Easily develop new and port existing applications.
  • Optional Intellistand
    Increases application flexibility by providing a hands-free mode.
  • Multiple indicators: beeper mode, pager mode and LEDs
    Provides dependable user feedback in a wide range of environments.

What's in the Box

  • Symbol MT2090
  • Docking cradle
  • Power adapter
  • Power cable
  • Data cable

Product DescriptionSymbol MT2090 - data collection terminal - Windows CE 5.0
Product TypeData collection terminal - rugged
Operating SystemMicrosoft Windows CE 5.0
DisplayColor - 320 x 240
ProcessorIntel XScale PXA270
Processor Clock Speed312 MHz
Wireless ConnectivityBluetooth, 802.11a/b/g
Barcode ReaderYes ( 2D imager )
BarcodesCode 93, Code 39, UCC/EAN-128, NW-7, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, Discrete 2 of 5, Italy Pharmacode, Codabar, Postnet , PDF417, Data Matrix, PLANET, TLC39, Australian Post, Japanese Post, Kix (Netherlands) Post, UPC-E1, MacroPDF417, UK Post, Royal Mail, Micro QR code, 4-State postal code, CC-A, CC-B, CC-C
Dimensions (WxDxH)3.1 in x 5 in x 7.8 in
Weight13.68 oz
ColorDark gray
LocalizationUnited States
Manufacturer Warranty3 years warranty
