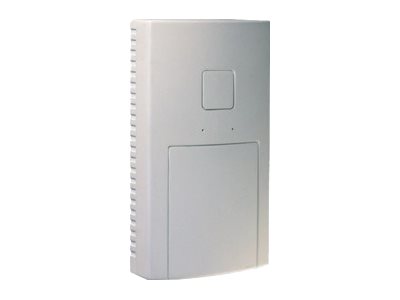

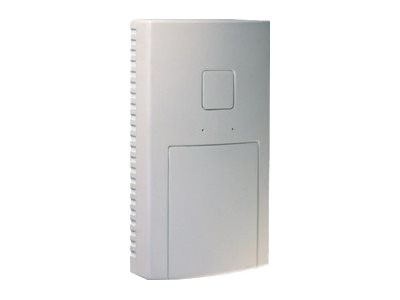

The AP 6511E is expressly designed for one of the most challenging wireless LAN environments - dormitory and hotel guest rooms. Standard service personnel can install the AP 6511E in minutes, not hours, using existing category 5 or 6 cabling already in the walls. The installation is predictable and repeatable, two key reasons the AP 6511E will dramatically lower the installation time and cost of a room wireless LAN. This easy setup also means there is no need to have a dedicated IT team on site. The AP's sleek "hide in sight" design and minute size match the decor of any room.
The AP 6511E includes intelligent self-optimizing self-managing virtual controller feature, which allows a small property to gain the benefits of a central controller, automatic adoption, central configuration and status, and automatic RF management of up to 25 AP 6511E access points - without the cost of a dedicated network management controller.
For larger properties and facilities, the AP 6511E can be managed by Zebra's WiNG Express Manager to scale and seamlessly integrate up to 1,024 indoor and outdoor WiNG Express access points. The easy setup, combined with the WiNG Express management options, means your customers can experience great internet access at a price you can afford.
- Full 802.11n performance with standard 802.3af
Simplifies and reduces total cost of installation using standard Power-over-Ethernet (PoE).
- Dual band Support
Operates in either 2.4 GHz or 5.0 GHz frequency bands to support 802.11b/g/n or 802.11a/n wireless LANs.
- Internal antennas with 2x2 MIMO radio
Dual internal omni-directional antennas and 2x2 MIMO technology extend the performance and range for legacy and new 802.11n clients.
This unique multi-purpose device can execute and enforce IDS/IPS security policies configured using the access point.
- Sleek form factor
Designed to 'hide in sight' over any standard Cat5/6 structured wiring plate. The LEDs can be disabled by administrator command to further blend and disappear on the wall. There are no Wi-Fi or WLAN markings so the unit is discreet and subtle.
- Modular Industrial Design
The mounting bracket features six unique hole patterns to match most any telecom plate worldwide. A keystone snap-in port provides a fast method to connect any secondary cabling behind the wall to the AP. If the snap-in port is not used for a secondary cable, it can be dedicated as a switched Fast Ethernet port. To further add modularity and flexibility in network design, a three port Fast Ethernet Module can be field installed via a snap-in access port.
- Hotspot Access
The AP 6511E makes it easy for anyone to provide a hotspot guest access with integrated hotspot pages with ability to include personal logo and customizable messages for guest. With just a few clicks, the AP 6511E can be set up to allow guests access to the internet. In addition, AP 6511E supports ability to provision guest access by directing guest access requests to an externally hosted hotspot server.
|Product Description||Zebra WiNG Express AP 6511E - wireless access point|
|Device Type||Wireless access point|
|Data Link Protocol||IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n|
|Frequency Band||2.4 GHz, 5 GHz|
|Power Over Ethernet (PoE) Supported||PoE|
|Power||DC 36 - 57 V|
|Dimensions (WxDxH)||3 in x 1 in x 5 in|
