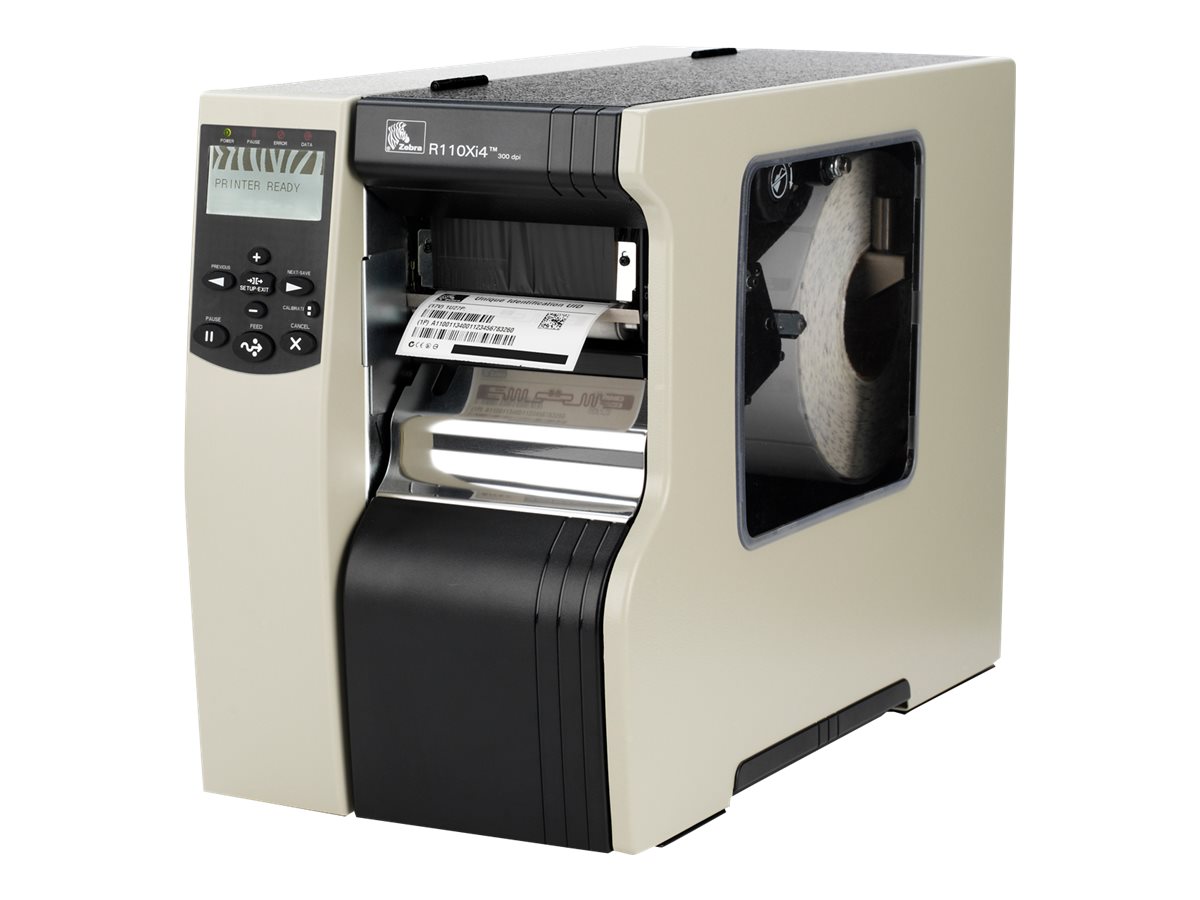

Zebra Xi Series R110Xi4 (R12-801-00000-R0)

R110Xi4 RFID Printer-Encoder (203 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 120VAC Cord-NA, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and Media Hanger)

by Zebra

Part #: R12-801-00000-R0

View Detailed Description


Call for Availability

With Zebra's R110Xi4 RFID printer/encoder - optimized for high volume operations - you can print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications. The R110Xi4 is designed with innovative, industry-leading features to meet the demands of current and future applications, and leverages the built-to-last Xi4 printer platform for robust performance.

This high performance printer/encoder delivers superior flexibility and unique features for a number of benefits. Auto-configuration, which enables encoding of a variety of different RFID tags, simplifies setup. And by encoding RFID inlays that are spaced closer together than other-brand printer/encoders, the R110Xi4 enables lower cost per label, fewer media-roll changes, and faster throughput. Even use media converted for other printers/encoders thanks to Zebra's ability to detect variable inlay placement.


  • Reduce RFID media costs
    R110Xi4 can print/encode small RFID tags spaced closer together - with a distance on most RFID inlays, smaller than what other printer/encoders can accommodate. By spacing inlays closer, label converters use less material - which for your organization means lower cost per label, fewer media roll changes and faster printer/encoder throughput for your organization. R110Xi4 can print directly on RFID inlays - so if you don't need to print labels, you can avoid the additional cost of label face stock or RFID label converting.
  • Benefit from RFID media flexibility
    Zebra's exclusive variable inlay detection and configuration feature automatically detects the inlay position within the tag, so you can choose media from a variety of sources with no concern for calibrating inlay location. The RXi4 offers multiple RFID power settings to support the widest range of transponder designs and sizes available in the market.
  • Ensure the highest encoding accuracy in the industry
    Encoding accuracy is critical to your operations. If a tag is not encoded accurately, the tagged asset doesn't "exist" in inventory or in transit and becomes "lost" costing you money. Adaptive encoding technology - Zebra's patent-pending RFID encoding module - ensures the highest encoding accuracy in the industry.
  • Save setup time
    Smart inlay detection and configuration considerably reduces setup time. Automatic RFID inlay position calibration saves users the time and frustration of manually calculating the inlay position on labels.

Product DescriptionZebra Xi Series R110Xi4 - label printer - monochrome - direct thermal / thermal transfer
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Weight50.04 lbs
LocalizationNorth America
Max Media SizeRoll (4.5 in)
Max Media Size (Custom)4.5 in x 150 in
Print SpeedUp to 840.9 inch/min - max speed
Max Resolution ( B&W )203 dpi
InterfaceParallel, USB, LAN, serial
Processor133 MHz
RAM Installed ( Max )16 MB SDRAM
Flash Memory Installed (Max)8 MB
Language SimulationZPL II, Extensible Mark-up Language (XML)
BarcodesCode 93, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet , PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Code 128B, Code 128C, Code 128A
Media TypeLabels, continuous forms, RFID labels
NetworkingPrint server - Ethernet, Fast Ethernet - integrated
PowerAC 120/230 V
Microsoft CertificationCompatible with Windows 7
Dimensions (WxDxH)10.3 in x 20.4 in x 15.5 in
