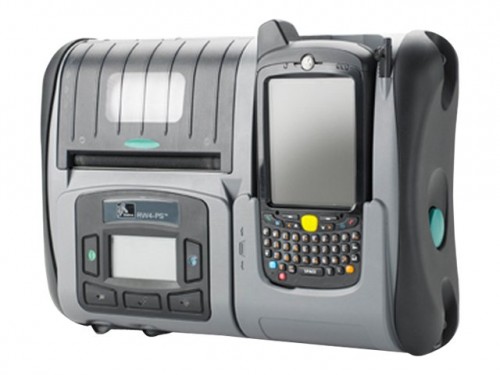

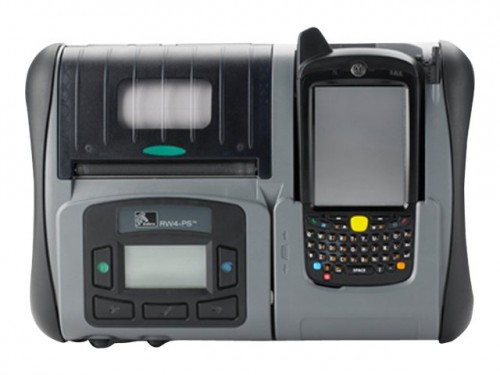

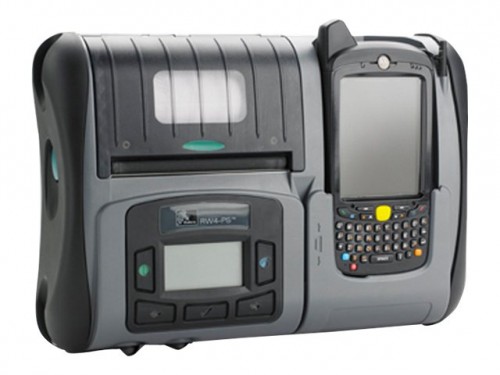

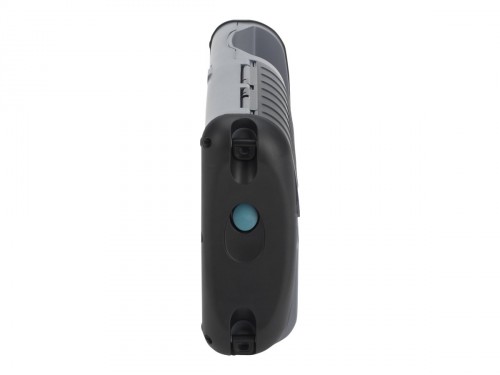

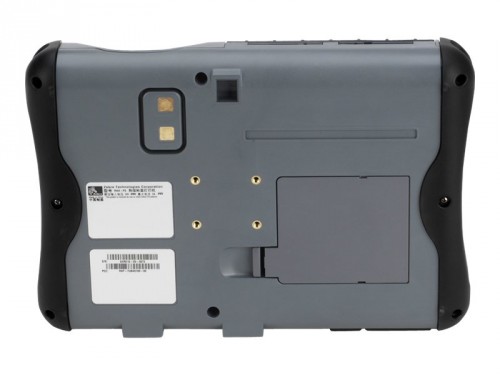

Zebra RW 420 Print Station, MC55/MC65 version (R4P-6UBA0000-00)

Zebra Ait, Rw 420 Print Station, Dex, Bluetooth, Mc55/mc65 Version

by Zebra

Part #: R4P-6UBA0000-00

View Detailed Description


Call for Availability

Boost the efficiency and productivity of your mobile workforce with the compact, lightweight and rugged RW 420 Print Station - perfect for your route accounting, direct store delivery, field service/sales, or electronic citation operations.

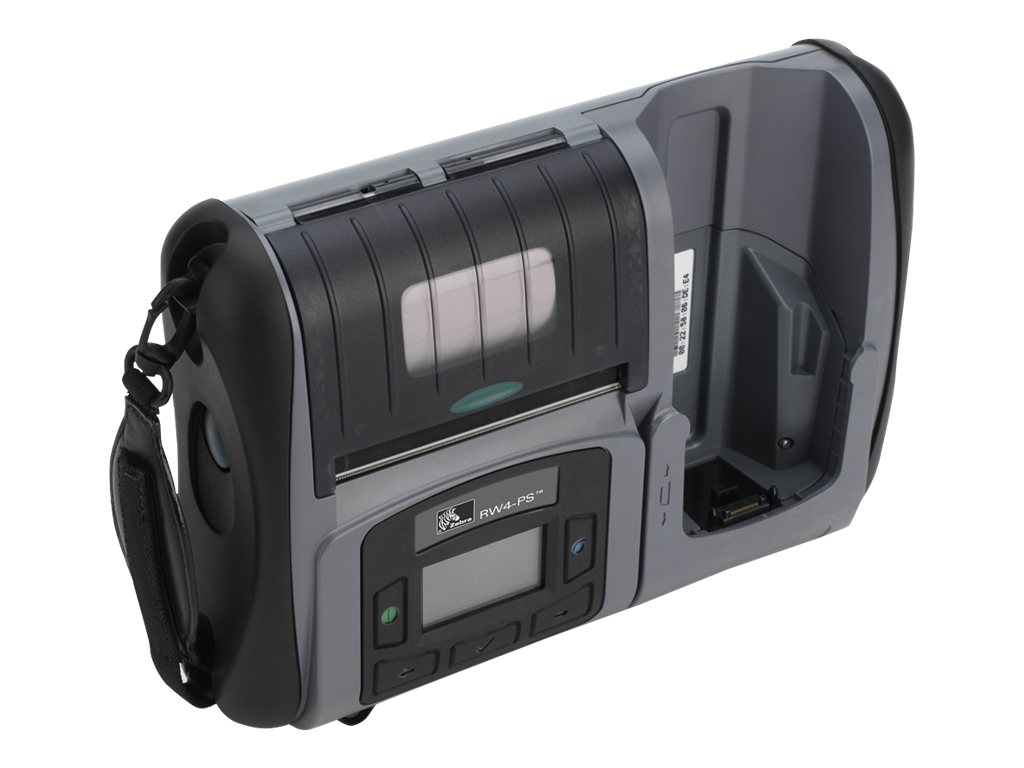

Mobile workers can easily carry the streamlined RW 420 Print Station via shoulder or hand strap to customer visits - where they can rest the unit on their arm to enter data, conduct transactions via the optional magnetic stripe card reader, and print receipts and other documents. They'll carry less, do more!


  • Direct thermal printing of bar codes, text, and graphics
  • 8 MB Flash for downloadable programs, receipt formats, scalable fonts and graphics
  • 7.4 V, 4.0 AHr removable, rechargeable Li-ion battery

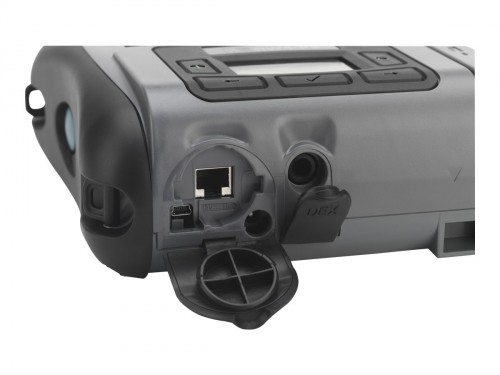

  • Serial RS-232 (RJ-45)10 pin
  • Standard USB 2.0 full speed
  • Resident scaleable fonts
  • Tear bar for easy receipt dispensing
  • Supports vertical or horizontal printing
  • Power on/off from printer keys, terminal or host
  • Center-loading media locking for variable roll widths

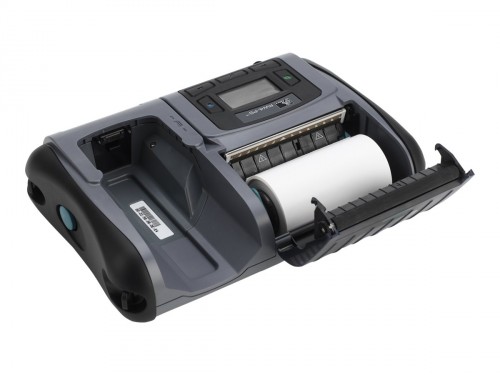

  • Clamshell" design for easy loading
  • IP54 environmental rating (resistance to water and dust)
  • Tolerance of multiple drops up to 5' to concrete

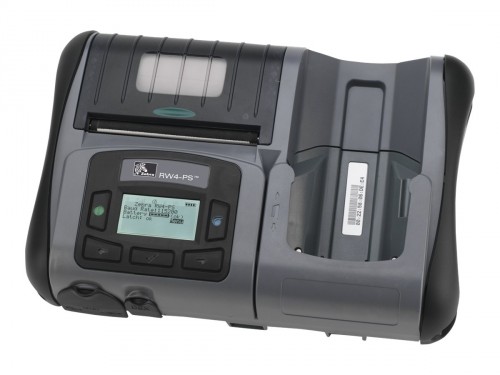

  • 5 button keypad and LCD
  • Smart battery management
  • Advanced 32-bit architecture for high speed processing
  • External DEX communications interface

What's in the Box

  • Zebra RW 420 Print Station, MC55/MC65 version
  • Bar code scanner charging stand
  • 1 x battery

Product DescriptionZebra RW 420 Print Station, MC55/MC65 version - label printer - monochrome - direct thermal
Printer TypeLabel printer - direct thermal - monochrome
Form FactorPortable
Weight3.24 lbs
Max Media SizeRoll (4.4 in)
Min Media Size (Custom)2 in
Max Media Size (Custom)4.37 in
Print SpeedUp to 179.5 inch/min - max speed
Max Resolution ( B&W )203 dpi
InterfaceUSB, serial, Bluetooth, Dex
RAM Installed ( Max )16 MB
Flash Memory Installed (Max)8 MB
Language SimulationZPL , EPL2, Card Printer Program Language (CPPL)
BarcodesCode 93, Code 39, UCC/EAN-128, GS1 DataBar, QR code, MaxiCode, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, Codabar, Code 128, Interleaved 2 of 5, Postnet , PDF417, MSI-Plessey, Data Matrix, FIM
Media TypeLabels, continuous forms, receipt paper, tag stock
NetworkingPrint server - Bluetooth
BatteryRequired 1 lithium ion Included Qty 1
Microsoft CertificationCompatible with Windows 7
Dimensions (WxDxH)2.8 in x 7.6 in
