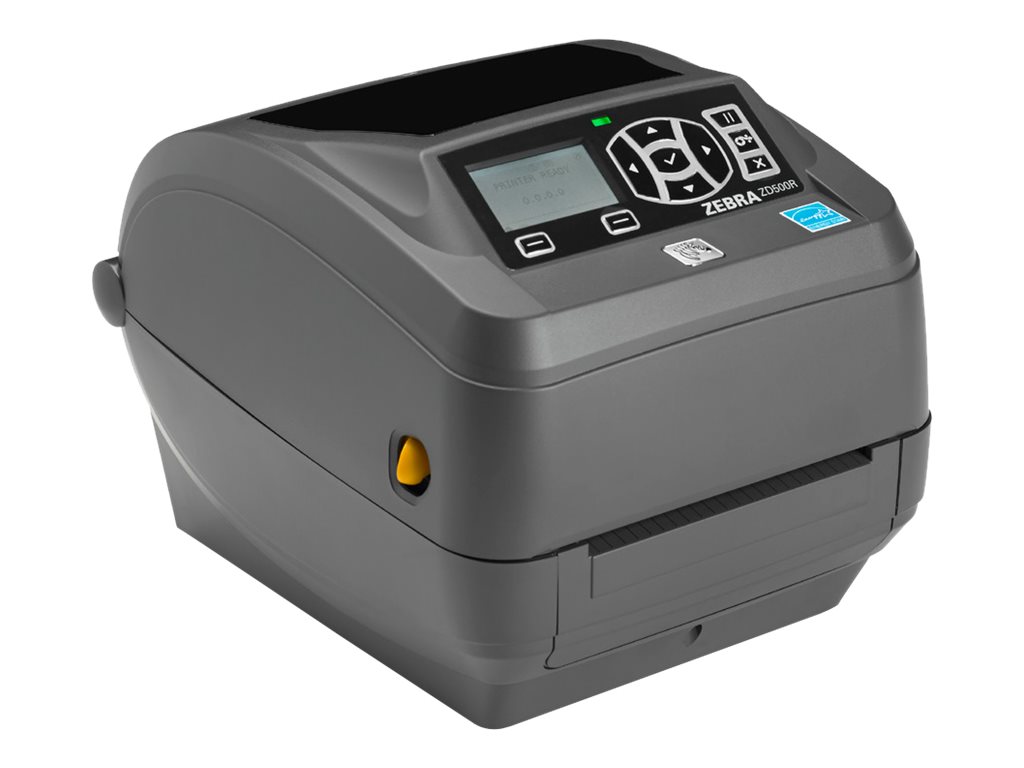

Zebra ZD500R (ZD50042-T113R1FZ)

ZD500R RFID Printer (TT, 203 dpi, USB/Serial/CP/Ethernet, 802.11abgn, Bluetooth, Peel, RFID-UHF)

by Zebra

Part #: ZD50042-T113R1FZ

View Detailed Description


Save 13%

Call for Availability

Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you'll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, it is ideal for numerous applications such as retail tagging, and manufacturing, government and healthcare tracking.


  • Tool-less printhead and platen replacement
  • OpenACCESS for easy media loading
  • Quick and easy ribbon loading
  • Simplified calibration of media
  • Quad connectivity: USB, Parallel, Serial, and Ethernet
  • Real-time clock
  • LCD user interface
  • ENERGY STAR qualified
  • Unicode compliant for multi-language printing
  • Two resident scalable ZPL fonts
  • Head-up sensor
  • Standard tear-off mode feature

What's in the Box

  • Zebra ZD500R
  • USB cable

Product DescriptionZebra ZD500R - label printer - monochrome - direct thermal / thermal transfer
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Weight4.85 lbs
LocalizationNorth America
Max Media SizeRoll (4.25 in)
Min Media Size (Custom)0.75 in
Max Media Size (Custom)4.25 in
Print SpeedUp to 359.1 inch/min - B/W
Max Resolution ( B&W )203 dpi
InterfaceParallel, USB, LAN, serial, Wi-Fi(n), Bluetooth 3.0 EDR
RAM Installed ( Max )128 MB SDRAM
Flash Memory Installed (Max)256 MB
Language SimulationZPL , ZPL II, ZBI
BarcodesCode 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, Plessey, EAN-14, Standard 2 of 5
Media TypeContinuous forms, receipt paper, fanfold paper, continuous paper labels, tag labels, die cut labels
FeaturesReal time clock, label dispenser
NetworkingPrint server
PowerAC 120/230 V
Microsoft CertificationCompatible with Windows 7
Dimensions (WxDxH)7.6 in x 10 in x 7.5 in
