4-Channel PCIe HW Video Capture Card with SDK (DVP-7637E)
by Advantech
•Part #: DVP-7637E
View Detailed Description
$271.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

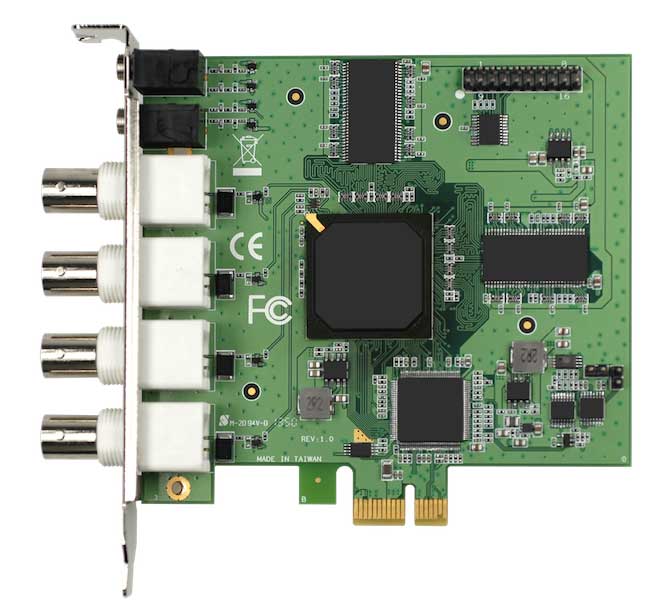

DVP-7637E is a PCI-bus, hardware compression video capture card with 4 analog video and 4 audio inputs. DVP-7637E supports H.264 base line compression format at up to 4CIF resolution at real-time frame rate (30/25fps) for each channel. With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7637E is an ideal solution for various video capture applications or video surveillance.
- 4-channel composite video inputs with H.264 hardware compression
- 120/100 fps (NTSC/PAL) at 4CIF resolution for display
- 120/100 fps (NTSC/PAL) at up to 4CIF + CIF dual stream resolution for recording
- PCIe x1 host interface
- Windows/Linux OS supported
| Audio | Audio Input | 4 x RCA |
| General | Description | 4-ch H.264 Video Capture Card with SDK |
| Interface | Host Interface | PCIe x1 |
| Video | Compression | H/W H.264 |
| Channels | 4 | |
| Connectors | BNC Connector | |
| Max. Display Rate | 30/25 fps (NTSC/PAL) @ 4CIF/ch | |
| Max. Recording Rate | 30/25 fps (NTSC/PAL) @ 4CIF + CIF Dual Stream/ ch |
